Extended Wall End Panel

Product Description

Finished flat/slab panel that is sized to conceal the exposed side of a wall cabinet (e.g. at the end of a cabinet run). The height of this panel is sized 0.75'' larger than typical to accommodate wall cabinets with a bottom panel attached.

Product Details

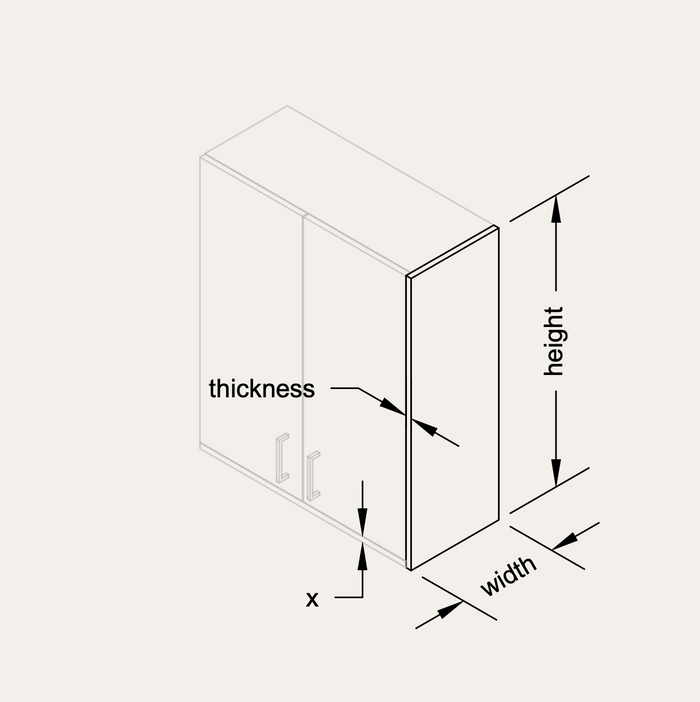

width refers to the width/depth of the panel.

height refers to the height of the panel.

thickness = 0.75'', & refers to the thickness of the panel.

‘x’  refers to the panel’s vertical extension beyond standard Wall cabinet heights.

‘x’  = 0.75’’

This product is always a slab or flat style panel that matches the finish of the door / drawer finish selection. It will not have a door design (e.g. shaker).

This panel is finished on all sides (front, back, and all 4 side edges).

This panel is intended to conceal an exposed side surface of a Wall cabinet, which is cabinet box colour. The available sizes consider Wall cabinet sizing.

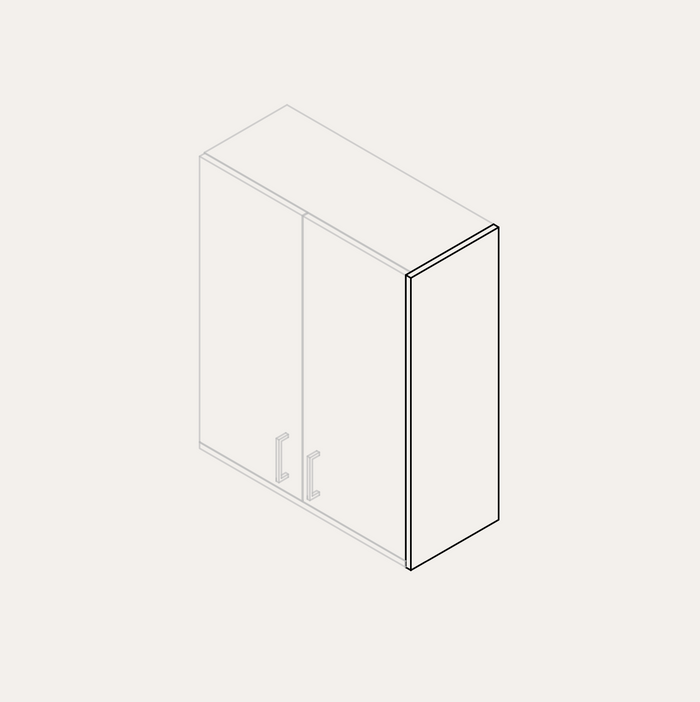

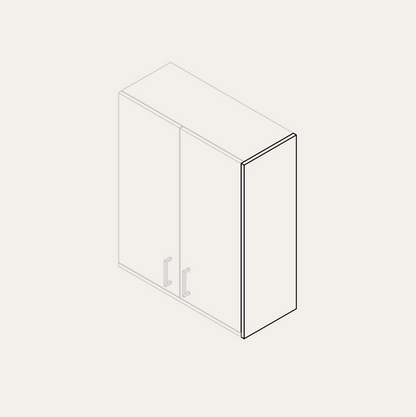

The width is sized to extend beyond the cabinet box and line up flush with the cabinet doors (as depicted in product drawings).

The height is sized to extend beyond the cabinet box by 0.75’’ and line up flush with any additional bottom panels that may be attached to the cabinet's bottom surface for valence or other purposes (as depicted in product drawings)

Panels are shipped detached and are intended to be attached to the cabinet box during installation.
